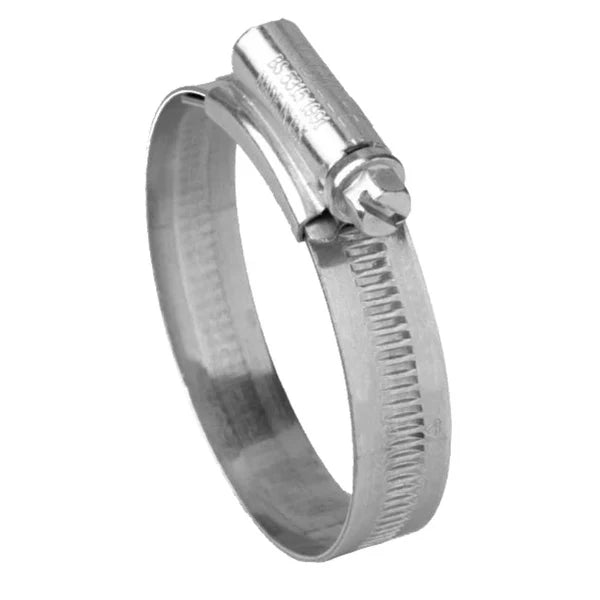

Jubilee Clip Sizes Explained: Choosing the Right Fit Every Time

When it comes to securing hoses in automotive, plumbing, marine or industrial systems, selecting the correct jubilee clip sizes is essential. A jubilee clip may look like a simple fastening component, but choosing the wrong size can lead to leaks, hose damage or even system failure.

Whether you’re fitting a new hose assembly or replacing an existing clamp, understanding how sizing works will ensure a secure, long-lasting connection. In this guide, we’ll explain jubilee clip sizes in detail, show you how to size a jubilee clip correctly and help you decide between heavy duty vs standard jubilee clips for your application.

What Are Jubilee Clip Sizes?

Jubilee clip sizes refer to the adjustable diameter range that the clamp can securely fasten. Unlike fixed fasteners, jubilee clips are designed to tighten within a specific minimum and maximum diameter range.

For example, a clip marked 25 - 40mm means it can be adjusted to securely clamp hoses with an outside diameter between 25mm and 40mm.

Why size ranges matter

Each clip has a working range, but the best performance is achieved when your required diameter sits roughly in the middle of the range. Selecting a clip that is almost fully tightened or fully loosened can:

• Reduce clamping efficiency

• Cause uneven pressure distribution

• Increase wear on the screw housing

• Compromise sealing performance


Understanding jubilee clip sizes properly ensures reliable sealing and longer service life.

How to Size a Jubilee Clip Correctly

If you’re unsure how to size a jubilee clip, follow these simple steps.

Step 1: Measure the Hose Outer Diameter

Always measure the outside diameter of the hose once it has been fitted over the pipe or spigot. This is critical. The internal bore size alone is not enough to determine the correct clip size.

Use:

• A vernier caliper for accuracy

• Or a flexible tape measure for larger diameters


Step 2: Consider Hose Wall Thickness

Industrial or reinforced hoses have thicker walls, which significantly increase the outer diameter. Measuring before installation may result in selecting the wrong size.

Step 3: Choose the Correct Size Range

Once you have the outer diameter measurement:

• Select a clip where your measurement falls comfortably within the adjustment range

• Ideally, the diameter should sit near the centre of the range rather than at either extreme


Common sizing mistakes to avoid

• Guessing based on hose bore size

• Selecting the smallest possible size and over-tightening

• Reusing worn or stretched clips

• Ignoring hose expansion under pressure


Taking the time to measure correctly makes choosing jubilee clip sizes far more reliable.

Standard Jubilee Clip Size Overview

While exact specifications vary slightly by manufacturer, below is the general guide to common jubilee clip size ranges and typical uses:

Always confirm the exact sizing chart from your supplier before ordering for critical installations.

Heavy Duty vs Standard Jubilee Clips

Understanding the difference between heavy duty vs standard jubilee clips is just as important as selecting the correct size.

Standard Jubilee Clips

Standard clips are suitable for light to medium duty applications. They typically feature:

• Moderate band width

• Standard screw housing

• Suitable torque for general use

• Zinc-plated or stainless options


Common uses include:

• Automotive hoses

• Plumbing repairs

• Irrigation systems

• General maintenance


Heavy Duty Jubilee Clips

Heavy duty clips are designed for higher pressures and more demanding environments. They typically offer:

• Wider, thicker bands

• Reinforced screw housing

• Higher torque capacity

• Improved clamping force


These are ideal for:

• Industrial hose assemblies

• High pressure systems

• Marine applications

• Commercial plant equipment


If your system involves vibration, pressure fluctuations or large diameter hoses, heavy duty options are usually the safer choice.

Choosing Jubilee Clip Sizes for Different Applications

Correctly choosing jubilee clip sizes depends not only on diameter, but also on application and environment.

Automotive applications

• Coolant systems

• Fuel lines

• Turbo and intake hoses


Temperature changes and vibration make proper sizing critical to prevent leaks.

Plumbing installations

• Waste pipes

• Drainage systems

• Domestic water lines


Ensure corrosion resistant materials are used in damp environments.

Industrial and commercial systems

• Chemical transfer hoses

• Air and fluid handing systems

• Agricultural equipment


These environments often require heavy duty clamps with higher torque capability.

Marine and outdoor use

In coastal or outdoor settings, corrosion resistance becomes a priority. Stainless steel grades (such as W4 or W5) provide superior durability compared to zinc plated alternatives.

Material Considerations

Jubilee clips are typically available in:

• Zinc plated steel: cost effective for indoor use

• Part stainless (e.g., W2): improved corrosion resistance

• Full stainless steel (e.g., W4/W5): best for marine or harsh environments


Material selection should match both environmental exposure and system requirements.

Installation Best Practices

Even the correct jubilee clip size can fail if installed incorrectly.

• Position the clip just behind the hose barb or fitting ridge

• Ensure the band sits evenly around the hose

• Tighten gradually and evenly

• Avoid over tightening, which can damage the hose

• Inspect after installation and recheck after system pressurisation


Proper installation ensures optimal sealing and prevents premature wear.

When Should You Replace a Jubilee Clip?

Replace the clip if you notice:

• Corrosion or rust

• Stripped screw housing

• Warped or cracked band

• Reduced clamping force

• Signs of leakage


In critical systems, it’s often best practice to replace clips rather than reuse older ones.

FAQs

How do I know what size jubilee clip I need?
Measure the outside diameter of the hose once fitted to the pipe, then select a clip whose adjustable range includes that measurement comfortably.

Can I use a slightly larger jubilee clip?
It’s best to avoid selecting a size that is near its maximum adjustment. Choose one where the adjustable range includes your measurement comfortably.

What happens if a jubilee clip is too small?
It may not fit over the hose or could require over tightening, which can damage the hose and compromise sealing.

What’s the difference between heavy duty and standard jubilee clips?
Heavy duty clips have thicker bands and stronger housings, making them suitable for higher pressures and more demanding industrial applications.

Are stainless steel jubilee clips better?
For outdoor, marine or corrosive environments, stainless steel clips offer superior resistance to rust and long term degradation.

Should I tighten a jubilee clip as much as possible?
No. Over tightening can damage the hose and strip the screw mechanism. Tighten securely within recommended torque levels.

Can jubilee clips be reused?
They can be reused if undamaged, but for safety critical or high pressure systems, replacement is often recommended.

Understanding jubilee clip sizes is essential for achieving secure, leak free hose connections. By learning how to size a jubilee clip properly and recognising the difference between heavy duty vs standard jubilee clips, you can ensure optimal performance across automotive, plumbing and industrial applications.

Taking accurate measurements, selecting the right material and installing the clip correctly will guarantee a reliable fit every time.

If you’re unsure which option suits your project, get in touch with our expert consultants and we can help you make the right choice with confidence.
