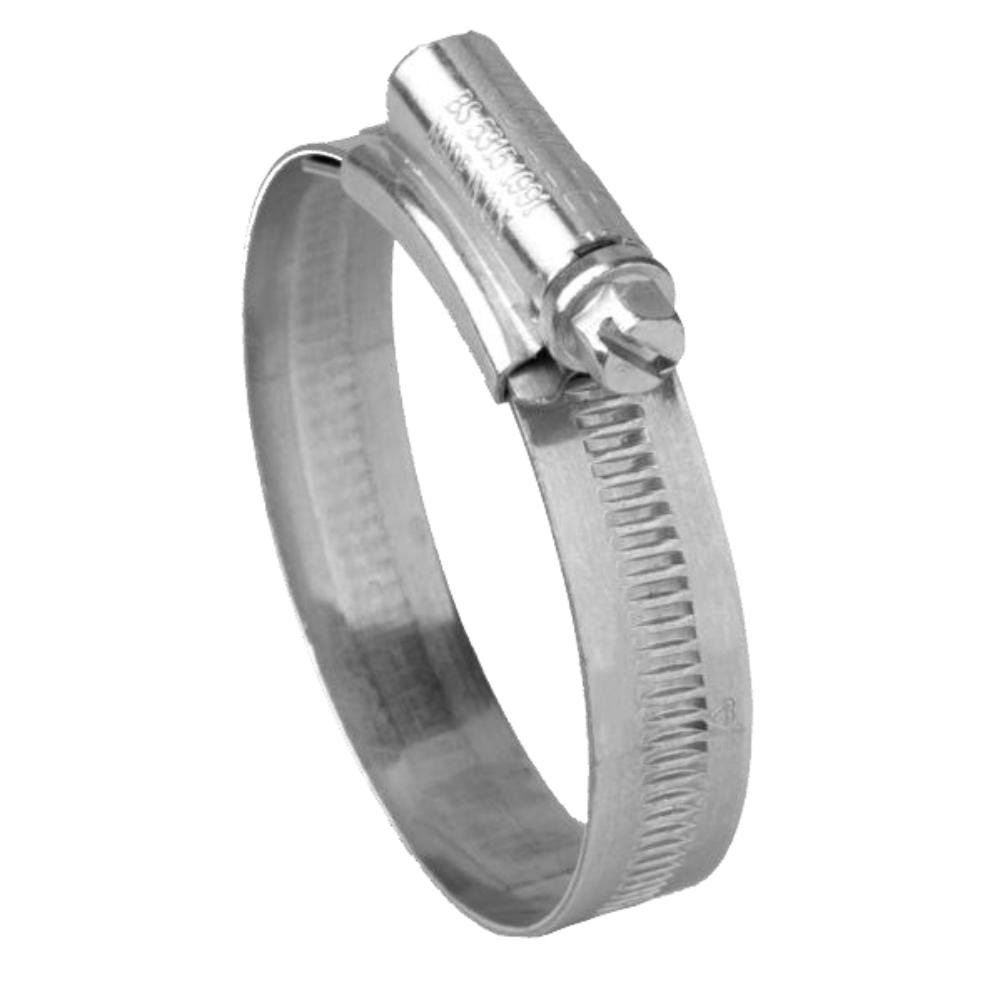

Jubilee Clips Original Range 304 Stainless Steel
Description
The most versatile of clips in the Jubilee® range, our original range Jubilee® hose clips in 304 (18/8) stainless steel are widely used across all industries where hose clips are used to secure hoses, as well as for other applications. Their corrosion resistance enables their use in the marine, oil and gas and food sectors as well as the agricultural, hardware and industrial sectors, where higher corrosion resistance is required.
Quality assurance: DIN3017.
Corrosion resistance: 1000hrs NSS Test.
Fastening: 7mm A/F screw.
Band width is 9.9mm for products with a range (mm) of 9.5-12, 11-16 and 13-20. Band width is 13.0mm for all other products.
| Products with a range (mm) of: | Recommended Torque (Nm) |
| 9.5-12, 11-16, 13-20. | 3.4 |
| 16-22, 18-25. | 4.2 |
| 22-30, 25-35, 30-40, 32-45. | 5.1 |
| 35-50, 40-55, 45-60, 120-150, 135-165, 158-190, 184-216, 210-242, 235-267, 260-292 and 286-318 | 5.9 |
| 55-70, 60-80, 70-90, 85-100, 90-120 and 110-140 | 6.7 |
Further information and data regarding BS No., range in inches, band thickness, max. torque (Nm) and max. pressure (PSI) can be found on the datasheet.
