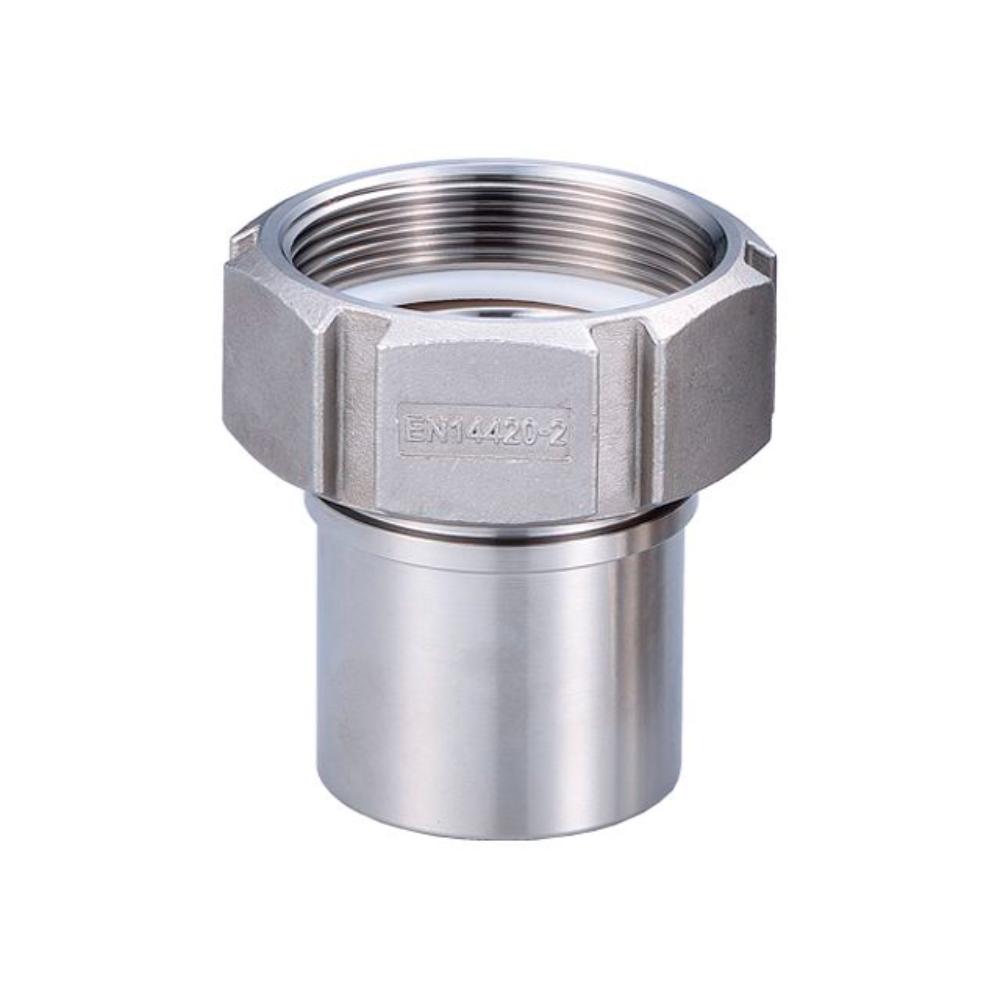

Stainless Steel DIN2817 Female BSP c/w Smooth Tail

Stainless Steel DIN2817 Female BSP c/w Smooth Tail

DIN2817 Smooth Tail Fittings are supplied with a smooth, non-serrated or ridged hose-tail & are suitable for hoses with harder XLPE or UHMWPE linings.

The smooth interference fit ensures the hose liner will not be punctured or crack when the coupling is tightened.

Must be used in conjunction with a suitable interlocking DIN 2817 (EN ISO 14420) safety clamp to ensure a safe and leakproof assembly.

Typically used on chemical and food applications.

NBR gasket as standard (Part C).

Working Pressure 16bar.

Want to make an enquiry on this product?

Please contact our sales team by telephone 0151 707 1652 or email sales@merseyflex.co.uk
