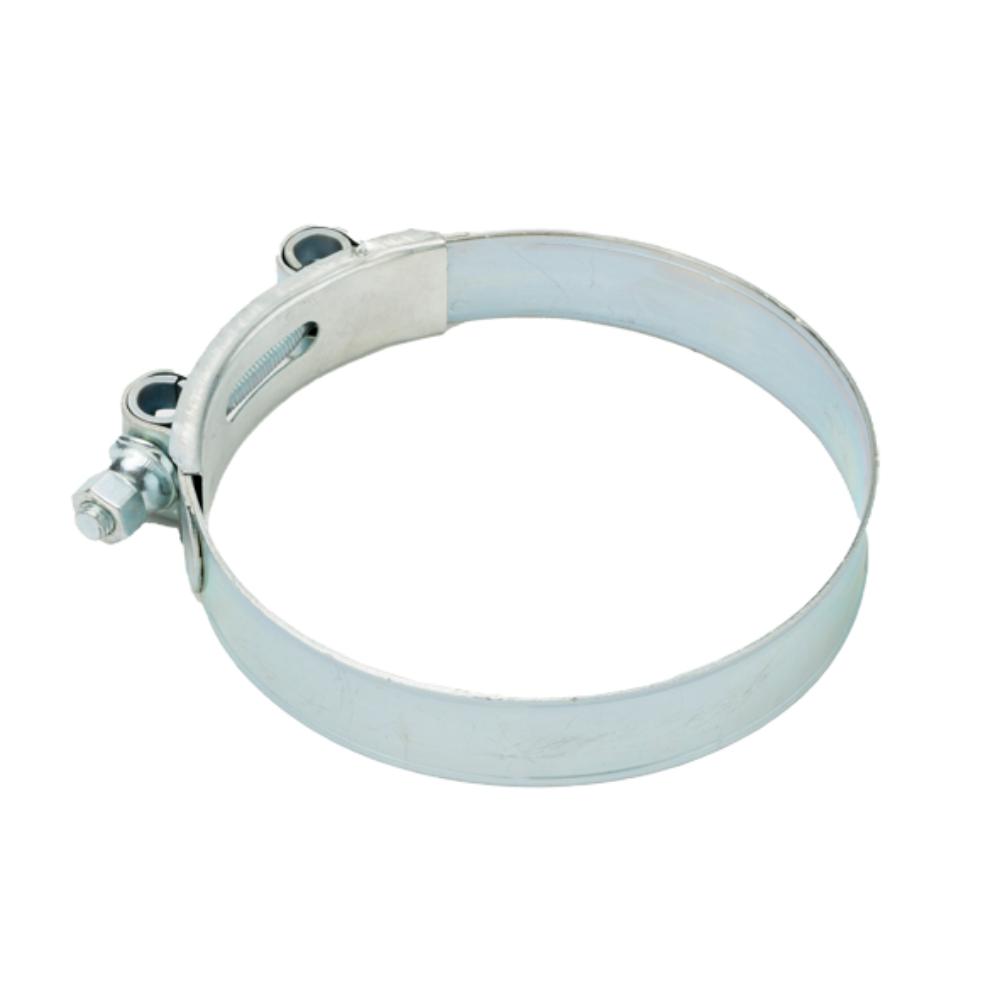

Superex Heavy Duty Steel Bolt Clamp W4 - 304 Stainless Steel

SKU: MK1719SS


Size
£0.00
Description
  • Ideal for securing hose couplings into PVC and rubber hoses in the workshop or on-site.
  • W4 specification means min 240 hours corrosion resistance in salt spray testing.
  • Ideal for marine, agricultural, chemical and corrosive environments.
  • Smooth underside and rolled band edges designed to prevent damage to the hose cover when tightened.
  • High strength 8.8 grade T-bolt ensues optimum torque when tightened.
  • Super clamp features 3 welding points for increased strength and security.
  • Recommended torque settings provided.
Dia. Size (mm) Band Width (mm) Band Thickness (mm) Bolt Size Torque Setting (Nm)
17-28 18 0.6 M5 4.5
29-43 20 0.8 M6 8
44-67 22 0.8 M6 16
68-130 24 1 M8 25
131-252 26 1 M10 50
